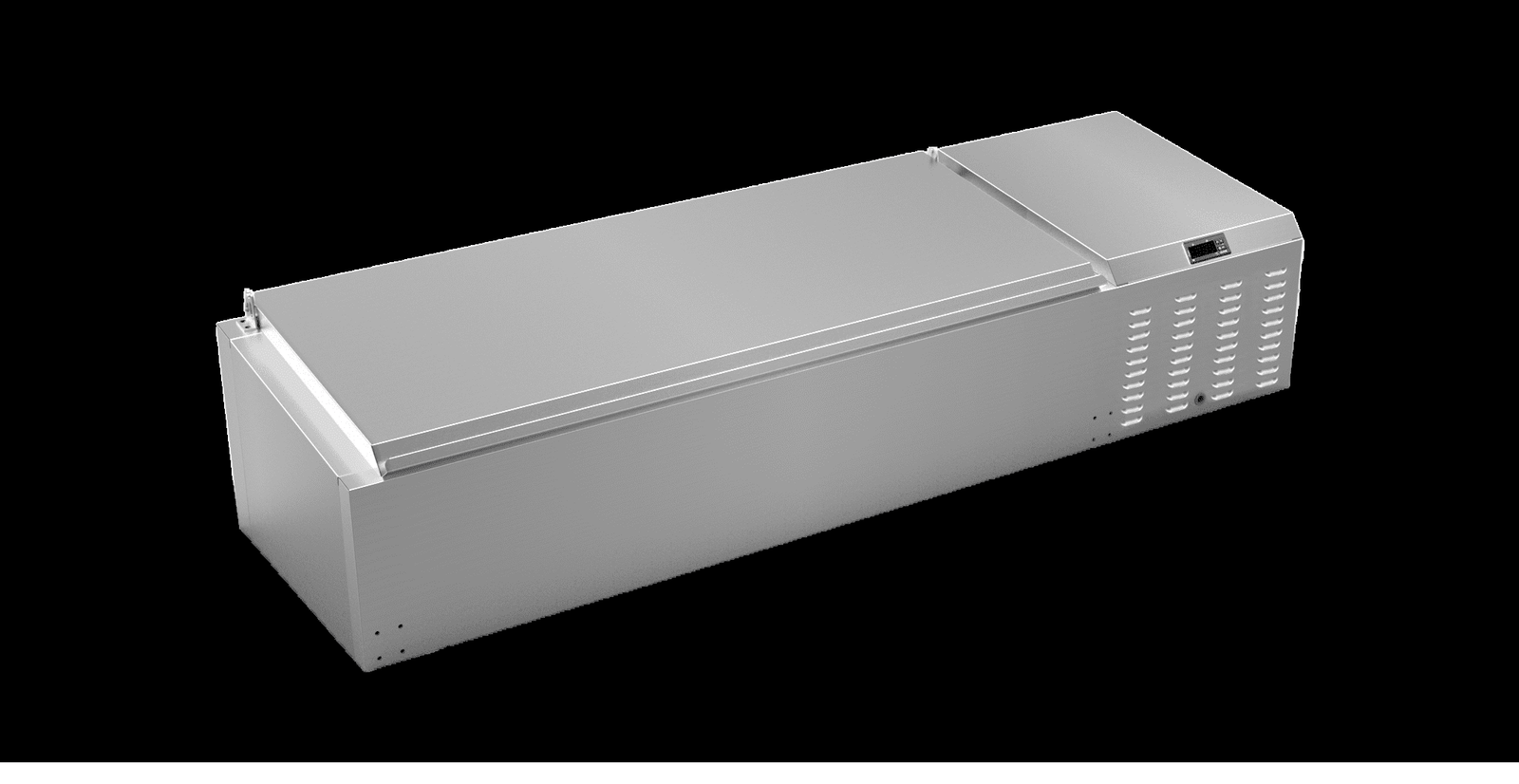

The Serv-Ware TR60-HC is a 60-inch refrigerated topping rail designed for high-volume sandwich, pizza, and deli operations that need maximum ingredient capacity at the prep line. Holding 12 GN 1/6-size pans, it spans a full five feet and keeps a wide variety of toppings, proteins, and condiments at safe refrigerated temperatures throughout the busiest service periods.
Both the interior and exterior are built from 304 stainless steel, delivering lasting corrosion resistance and effortless sanitation. CFC-free foam insulation provides energy-efficient thermal performance, and the angled basket-and-slides design keeps all 12 pan positions accessible and well-organized during fast-paced service.
The TR60-HC maintains a temperature range of 33°F to 41°F using an R290 refrigerant charge of 3.35 oz., with automatic defrost cycles every six hours. It draws just 3.5 amps on a standard 115V/60Hz/1Ph circuit — minimal electrical footprint for a large-capacity unit — and its ¼ HP compressor operates quietly in any kitchen environment.
Key Features:
- Holds 12 × GN 1/6 pans across a 60-inch width
- 304 stainless steel interior and exterior throughout
- CFC-free foam insulation; R290 refrigerant (3.35 oz. charge)
- Temperature range: 33°F – 41°F; auto-defrost every 6 hours
- 7° angled basket-with-slides for easy pan access during service
- Low power draw: 115V/60Hz/1Ph, 3.5 amps
- ¼ HP compressor; quiet and energy-efficient
- Designed for interior use in climate-controlled environments
Specifications:
- Exterior Dimensions: 59.96″W x 17.44″D x 13.5″H
- Storage Capacity: 12 × GN 1/6 pans
- Temperature Range: 33°F – 41°F
- Refrigerant: R290 / 3.35 oz.
- BTU/H: 1,100
- Horsepower: ¼ HP
- Electrical: 115V / 60Hz / 1Ph, 3.5 Amps
- Defrost: Auto, every 6 hours
- Exterior Material: 304 Stainless Steel
- Interior Material: 304 Stainless Steel
- Insulation: CFC-Free Foam
- Shipping Weight: 140 lbs.
Perfect for busy delis, pizzerias, and sandwich counters where a full range of chilled toppings needs to stay cold and accessible across a wide prep station.
